Water Around the Air Handler

Why an air conditioner makes water at all

An air conditioner does not only cool the air. It also removes moisture. As warm humid air passes over the cold evaporator coil, water vapor condenses on the fins just as it does on a cold glass in summer. On a humid South Florida day, a system can collect a large amount of water, enough to fill a bucket over a day of running. That water drips into a drain pan beneath the coil and runs out through a condensate drain line to a safe place, usually outdoors or into a plumbing connection.

As long as the pan, the line and the safety devices work, nobody notices any of this. When something in that path fails, the water has nowhere to go. It overflows the pan, runs down the cabinet, soaks insulation, drips through the ceiling or pools on the floor of the closet. In an attic installation, it can stain the ceiling of the room below, often long before anyone sees water at the unit itself.

So water at the air handler is a failure of the drainage path in most cases. It is not automatically a refrigerant leak, though a technician will confirm that, and it does not mean the unit is ruined. It does mean the moisture needs attention quickly, for the sake of the building and for the air system.

Safety first: water and electricity

An air handler contains a blower motor, a control board, wiring and often electric heat strips. Water around it is a safety concern. Do not touch the unit with wet hands or while standing in water. If water is pooling and reaching outlets, the disconnect or wiring, switch off the system at the thermostat and, if the electrical panel is dry and within safe reach, switch off the breaker. If you cannot do that safely, call a qualified person.

In an attic, water running onto a ceiling can reach light fixtures and exhaust fans below. A sagging, bulging ceiling can fail suddenly. Keep people and pets out from underneath, and do not poke it. If water is actively pouring and there is any danger, call emergency services.

These cautions are not meant to alarm, just to set the order. First make the area safe. Then handle the water. Then work out the cause.

• Do not touch the unit or wiring while standing in water.
• Turn off cooling at the thermostat first.
• Keep clear of any ceiling that bulges or sags.
• If the panel is dry and reachable, shut off the breaker for the system.

The most common cause: a clogged condensate drain

In warm humid conditions, the drain line is a good place for slime, algae, dust and debris to grow and collect. Over time that material can narrow or block the line. Once it is clogged, water backs up into the pan, which fills and spills over. Many systems include a float switch that shuts the system off when the pan fills, and a system that stopped working and has water around it may be showing that switch at work.

Signs of a clogged drain include water in the pan that does not go down, a damp or musty smell near the unit, water dripping at the secondary drain outlet if there is one, and a system that cycles off. It tends to get worse in the heaviest cooling weather, when the most water is made.

A technician checks the line for flow and clears it using proper methods. The page on checking the drain line explains what that involves, and the page on condensate drain pan and line describes the parts. Homeowners sometimes pour household chemicals down the line, which is not advisable without knowing the pipe material and the system, so ask first.

Other causes: pan problems, frozen coil and installation faults

A clogged line is the most common cause, but not the only one. The drain pan itself can rust through or crack, especially in older metal pans, and drip even if the line is clear. The pan may not be level, so water collects at one side and spills. A loose or cracked drain fitting can leak at the connection. The unit may have been installed with a poor slope on the line, which lets water sit and grow slime.

A frozen coil is another important cause. When ice thaws, it can release more water than the drain can handle at once, and a system that froze overnight may leave a pool at the base by morning. The page on frozen coil signs and causes explains why coils freeze, and why restricted airflow from a dirty filter is so often behind it.

Finally, not all water is condensate. A roof leak above an attic unit, a plumbing leak nearby or a leaking humidifier or water heater can produce water near the unit that has nothing to do with cooling. A technician looks at where the water comes from and what it looks like to separate these cases. For roof-related water, see the page on roof leaks over attic ductwork.

Why moisture changes the cleaning plan

Moisture matters to duct and air handler cleaning for several reasons. First, wet insulation inside the cabinet or on duct exteriors loses its value and can hold water against metal, causing rust, odor and staining. Second, a pan with standing water grows slime that can spread to the coil and the cabinet. Third, wet surfaces trap dust, which can turn into a muddy film on the blower, coil and plenum.

Fourth, and most important for planning, cleaning a wet system is usually wasted effort. If the leak is still active, water will return and undo the work. If insulation is saturated, it has to be handled first. A technician will usually recommend that the water source be fixed, the area dried and the wet parts assessed before any cleaning is considered.

That does not mean cleaning has no role. Once the leak is fixed and the unit is dry, cleaning the drain pan, the coil and the blower compartment can remove slime and residue left behind. The page on air handler cleaning describes that work. The order matters: stop the water, dry, repair, then clean if the evidence supports it.

What you can safely do right now

There are several sensible actions that do not involve opening electrical compartments. Turn the thermostat to off so the system stops making more water. Mop or soak up standing water with towels, taking care around electrical parts. Move stored items out of the closet or away from the unit. Take photographs of the water, the unit, the ceiling and anything stained, with a date.

If your system has an accessible drain cleanout, a vertical stub of pipe with a cap near the air handler, you can look at it, but do not pour chemicals in without advice. Replace the filter if it is loaded, because a loaded filter can lead to a frozen coil and a water problem. Note whether the water appeared suddenly or gradually.

Do not remove the cabinet panels, do not bypass a float switch and do not run the system with water around it to see whether it will improve. If the water seems to be coming from above, such as the roof or another unit, say so on the phone. Photographs and a clear description make the call quicker and help the technician plan.

1. Turn cooling off at the thermostat.
2. Make the area safe and clear standing water with towels.
3. Photograph the water, the unit and any stains with the date.
4. Replace a loaded filter and check that registers are open.
5. Call for an inspection before running the system for long.

What a technician will check

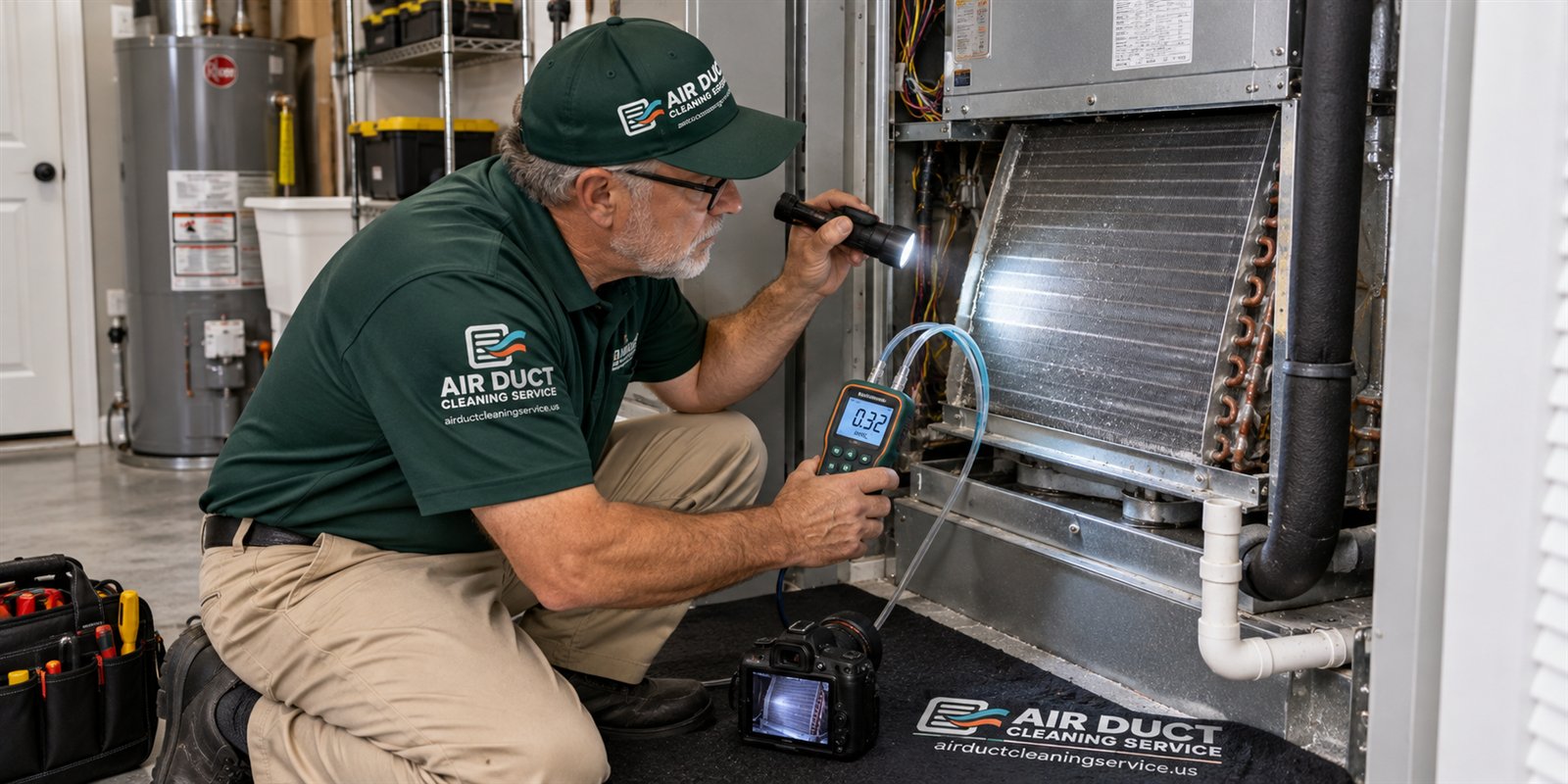

A visit for a water leak begins with questions: when the water started, how much, whether the system stopped, whether anything changed recently. The technician then checks the area for the source: the drain pan, the primary and secondary drain lines, the float switch, the coil and the cabinet seams. The filter and airflow are checked, because a restriction may have caused icing. Water that looks clear and clean points to condensate, and dirty or rusty water points to a pan or roof problem.

The drain line is tested for flow and cleared if needed. The pan is inspected for cracks, rust and slime. If the coil face and the blower compartment are accessible, they are checked for slime, dirt and moisture. Where water has reached insulation, ceilings or ducts, those are documented with photographs and moisture readings, as described on the page about moisture readings and humidity.

The result should be a plain explanation of what caused the water, what has been done or needs doing, and whether any cleaning is justified. Repairs such as pan replacement, drain rework or insulation replacement are typically done by an HVAC contractor, and a trustworthy company will say when that is the case.

Odor, slime and the longer-term effects

Standing water in a pan is a place where slime grows. It can produce a sour, musty or sewer-like smell that comes through the vents whenever the system runs. Damp insulation adds to the odor. People often notice it first as a smell at the supply registers, and they assume the ducts are the source. The page on musty smell from vents explains why the smell often originates at the air handler and not in the ducts.

Over time, repeated overflows can stain ceilings, damage drywall, loosen flooring and encourage growth on damp materials. In a closet or attic, water can run down walls and into places that are not visible. That is why water at an air handler deserves a prompt response, even if the amount seems small.

A good first step is to have the drain cleared and the pan and cabinet checked, and to dry anything that got wet. After that, a technician can tell you whether cleaning of the pan, coil or blower is useful, and whether duct inspection is warranted. If there are visible signs of growth on materials, the page on visible mold versus dust explains how an inspector approaches that question.

Attic, closet and garage installations compared

Where the air handler sits changes how a water problem shows up. In an attic installation, a clogged drain often shows first as a stained ceiling in the room below, because the water drips into the attic and soaks through. Many attic units have a secondary pan under the unit and a second drain outlet, often placed above a window or door, so that dripping at that outlet is a sign that the main drain is blocked. If you see drops at that spot, switch cooling off and call.

In a closet installation, water tends to collect on the closet floor and may seep under the door or into the wall base. Carpet, baseboards and stored items take on water quickly. Moving items out and photographing the damage helps. In a garage installation, water pools on the garage floor or runs toward a drain, and it can be mistaken for a roof or water heater leak. A condo unit with the air handler in a closet or soffit adds another concern, because water can reach a neighbor below.

In all three, the response is the same: stop making water, make the area safe, document, and have the cause found. If water reached a neighbor, tell building management promptly, since shared ceilings and walls make the damage a joint matter.

Whatever the location, write down what you notice before the unit is repaired: the date, how much water, where it appeared first, whether the system cycled off and what the weather was like. If a technician later finds a clogged line, a rusted pan or a frozen coil, those notes help connect the cause to the damage, and they are useful for any insurance conversation about stained ceilings, flooring or stored belongings.

How the call goes and what to have ready

When you call, tell us where the water is, how much there is, and whether the system is off. Say whether the air handler is in the attic, a closet or a garage, and whether the ceiling below has stains. Mention whether the filter was loaded, whether the unit froze and whether you noticed any smell. Photographs help.

Quotes are given by phone only, and a water situation generally needs an on-site visit before any plan makes sense. There is a service call charge for the visit, explained on the phone before dispatch. We will tell you honestly if the problem is one for an HVAC repair contractor, such as a rusted pan or a drain rework, and whether cleaning belongs after repairs.

When you are ready, call, describe what you see and where, and we will sort out the safest next step with you.
